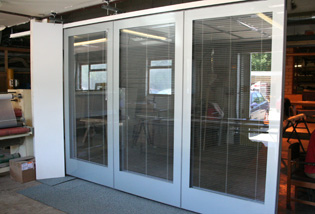

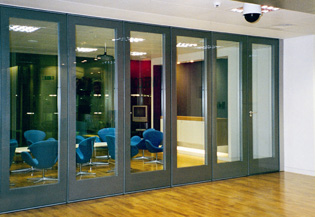

System GD

A double glazed movable wall system combining acoustic performance with ease of operation. Suitable for many different types of location including offices, conference, training and meeting rooms, corridors, schools and hotels.

Features:

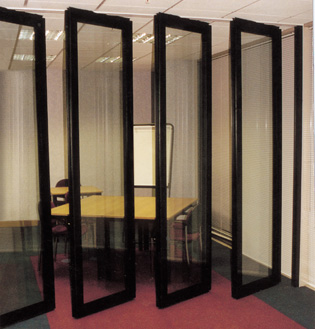

  • Top hung elements move easily and quietly on single or twin point suspensions running in aluminium track
  • No floor track required
  • Various options available for 'parking' elements when wall is open
  • Hinged full height pass doors

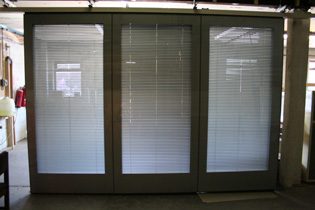

  • Electrically operated venetian blinds can be fitted within double glazing to give privacy when required. Alternatively, manifestation can be applied to the glass.
  • Seals at head and base operated by concealed jacking mechanism using quick release handle
  • Option for semi-automatic operation of seals using electronic controls

Specifications:

  • Sound resistance: Up to 45Rw(dB) depending on construction
  • Module thickness: 100mm
  • Module width: 600mm to 1000mm
  • Wall heights: Up to 3000mm as standard
