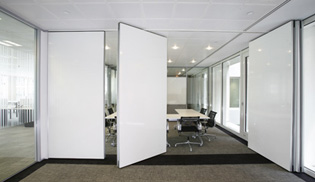

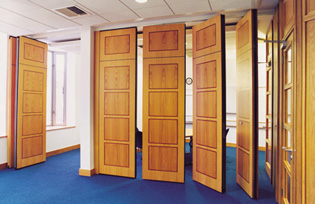

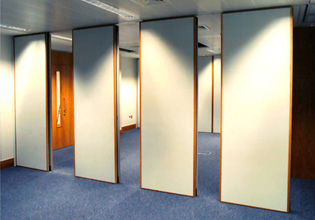

System AW

Ease of operation, acoustic performance and pleasing aesthetics are combined in System AW to create movable walls that maximise spatial versatility in offices, conference and meeting rooms, training areas, educational establishments, hotels and banqueting suites.

Features:

  • Top hung without track at floor level
  • Retractable acoustic seals at top and base operated either by quick release handle or semi-automatically with electronic controls
  • Single or two point suspension for centre or remote parking options
  • Variable track arrangements
  • Junction modules meet requirements for corner, three or four way abutments
  • Panel finishes include vinyl, veneer, melamine laminate, a magnetic dry wipe enamelled writing surface or paint
  • Optional integral pass doors, glazed modules and vision panels
  • Closing module fitted with face operated telescopic 'nose'

Specifications:

  • Sound resistance: Up to 53Rw(dB) depending on construction
  • Module thickness: 85mm, 100mm or 110mm
  • Module width: 600mm to 1200mm
  • Wall heights: Up to 6000mm as standard
